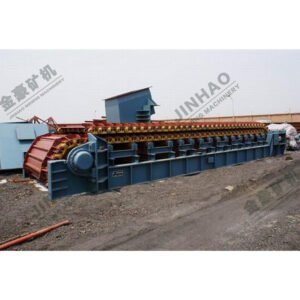

| Technical Data Sheet of Medium Plate Feeder | |||||||||
| Model | Apron Width (mm) | Feeding Size (mm) | Capacity(m³/h) | Motor | Overall Dimensions(LxWxH)(mm) | Weight（kg） | |||
| Speed(m/s) | Sprocket Center Distance（mm） | Speed(m/s) | |||||||
| Model | Power(kW) | ||||||||
| GBH80-2.2 | 800 | 2200 | 0.025-0.15 | ≤300 | 15-91 | Y132M-4 | 7.5 | 3840x2850x1185 | 3722 |
| GBH80-3 | 3000 | 4868x2900x1185 | 4014 | ||||||
| GBH80-4 | 4000 | 5640x2986x1185 | 5087 | ||||||
| GBH100-1.6 | 1000 | 1600 | ≤350 | 22-130 | Y132M-4 | 7.5 | 3240x3026x1235 | 3981 | |
| GBH100-3.0 | 3000 | 4640x3114x1235 | 4548 | ||||||
| GBH100-4.0 | 4000 | 5648x2890x1160 | 5086 | ||||||
| GBH120-1.8 | 1200 | 1800 | ≤400 | 35-217 | Y132M-4 | 7.5 | 3440x3314x1235 | 3965 | |
| GBH120-2.2 | 2200 | 3840x3314x1285 | 4238 | ||||||
| GBH120-2.6 | 2600 | 4240x3314x1285 | 4572 | ||||||
| GBH120-3.0 | 3000 | 4960x3150x1434 | 5100 | ||||||
| GBH120-4.5 | 4500 | Y160M-4 | 11 | 6460x3150x1434 | 6600 | ||||
Product Features
This machine is mainly used in large-scale concentrator crushing and classification workshops, as well as in cement, building materials, and related industries, for continuous and uniform feeding from the silo to the primary crusher.
Key features:
-The traction chain adopts a pitch plate pin-roller chain, offering excellent wear resistance, high tensile strength, and long service life.
-The overlapping arc-shaped chain plates effectively reduce material leakage.
-The conveying length is generally between 5–10 meters, with a maximum length not exceeding 20 meters.
Selection Guidelines
-Suitable for short-distance conveying and feeding of block materials with a particle size below 400 mm.
-Can be installed horizontally or at an inclination, with the maximum upward angle not exceeding 20°.
-Applicable for conveying materials with a bulk density of less than 2400 kg/m³, individual block weight below 500 kg, and temperature under 400°C.
